How Header Lateral Systems Improve Flow Efficiency

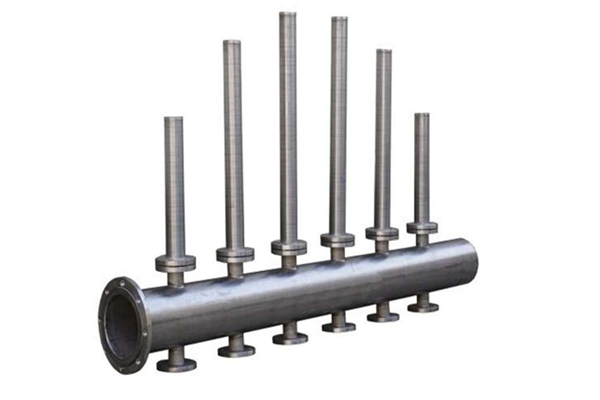

A Header Lateral System is a high-efficiency vessel internal component used in tanks, filters, and reactors to ensure uniform distribution or collection of liquids and gases across a media bed. It typically consists of a central header or hub connected to multiple engineered screen laterals, designed to control flow patterns with high precision. By delivering even hydraulic distribution, the system eliminates channeling and dead zones, improves media utilization, and enhances overall process efficiency. Widely used in water treatment, chemical processing, and industrial filtration systems, header lateral assemblies are valued for their ability to maintain stable performance under high pressure, corrosive conditions, and demanding backwash cycles.

Why Choose Header Lateral Underdrains?

Proven Simplicity

A central header with evenly spaced laterals provides reliable air and water distribution during backwash.

Durable Construction

Designed with robust materials, header lateral systems withstand decades of municipal and industrial service.

Serviceability

Easily accessible design allows for straightforward maintenance, inspection, and part replacement.

Versatility

Effective for a variety of filter configurations, making it a widely adopted solution in both gravity and pressure filter systems.

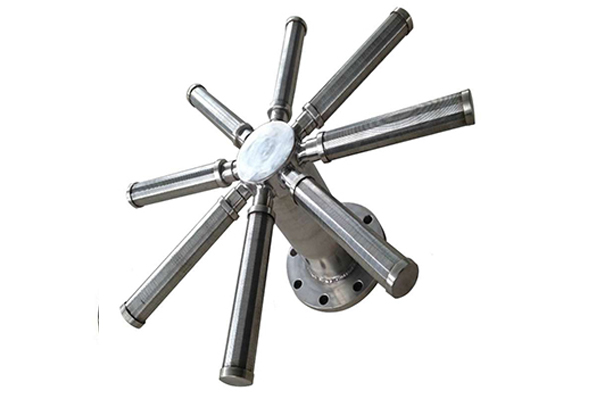

Key Features and Benefits of Wedge Wire Hub and Header Lateral Distributors

Even Flow Distribution

The header distributor system ensures equal flow across all laterals, reducing channeling and maximizing the efficiency of resin or media beds.

Customizable Design

Systems can be tailored to your process, with options for slot size, number of laterals, and hub or header dimensions to match specific vessel internal screen configurations.

High Durability

Constructed from corrosion-resistant wedge wire, these systems can withstand high-pressure environments common in oil and gas, chemical processing, and industrial filtration systems.

Backwash Efficiency

The backwashable screen laterals ensure effective cleaning, prolonging media life and minimizing operational downtime.

Applications Across Industries

The hub and header laterals serve diverse applications, including:

Water and Wastewater Treatment: Ideal for sand filter lateral systems, media filtration, and resin bed distributor systems.

Ion Exchange Systems: Used for water softener distributors and resin traps, preventing media loss during operation.

Petrochemical and Power Plants: Designed for rugged use in industrial water filtration, gas treatment, and high-flow systems.

Food & Beverage Industry: Ensure sanitary design and consistent product quality in filtration processes.

FAQ – Header Lateral System

Q1: What problems does a Header Lateral System actually solve?

A: It primarily addresses uneven flow distribution, media channeling, and dead zones inside vessels. These issues often lead to reduced filtration efficiency, poor process consistency, and premature media failure.

Q2: Can Header Lateral Systems handle aggressive or corrosive media?

A: Yes. When properly selected (e.g., stainless steel or alloy construction), they are designed for harsh chemical environments and long-term industrial operation.

Q3: Is maintenance complicated or time-consuming?

A: Not usually. Most systems are designed for accessibility, allowing inspection or replacement of individual components without full vessel disassembly, reducing downtime.

Q4: Do they work with existing filtration systems?

A: In most cases, yes. Header lateral assemblies can be customized to retrofit into existing vessels, provided dimensional and connection requirements are properly matched.

Q5: How do they improve operational efficiency in the long run?

A: By stabilizing flow distribution and improving backwash performance, they help extend media lifespan, reduce energy loss from pressure imbalance, and minimize maintenance interruptions.
