Water Nozzles Application

In the vast and intricate machinery of modern industry, water is the lifeblood. From the cooling towers of a sprawling steel mill to the pristine environment of a drinking water plant, the control and purification of water are paramount. Beneath the surface of these complex operations, within the immense filter vessels and treatment tanks, lies a component that is both deceptively simple and fundamentally critical: the water filter nozzle.

These small but mighty devices are the silent guardians of purity and efficiency. They are the crucial interface between the filtering media that cleans the water and the collection systems that carry it away. While often overlooked, the performance of an entire multi-million-dollar water treatment system can hinge on the quality, design, and durability of its nozzles.

Today, we will take a deep dive into the world of industrial water filter nozzles, with a special focus on the superior technology of wedge wire screens. We'll explore why this specific design has become the gold standard in demanding applications, from heavy industry to municipal water treatment, and how its material resilience allows them to thrive in the harshest chemical environments.

The Foundation: What Does a Water Filter Nozzle Actually Do?

Before we explore the advanced engineering of wedge wire, it's essential to understand the fundamental job of any filter nozzle. Imagine a large tank designed to filter water. This tank is filled with a bed of granular material—this is the "media." Depending on the goal, this media could be quartz sand to remove suspended solids, activated carbon to adsorb odors and organic compounds, or tiny ion exchange resin beads to soften water.

The challenge is simple in concept but difficult in practice: how do you let the clean water flow out of the bottom of the tank without letting any of the expensive and essential filter media escape with it?

This is the primary role of the water filter nozzle. Installed in a precise grid on a large plate (an underdrain) at the bottom of the vessel, these nozzles act as a highly specialized floor. They feature very fine, precisely engineered slots that are smaller than the media particles, effectively retaining the entire media bed.

But their job doesn't stop there. A critical process in media filtration is "backwashing." Over time, the media becomes clogged with trapped contaminants. To clean it, the flow is reversed, forcing water and often air up through the nozzles. This violent, turbulent process fluidizes the media bed, scrubbing it clean and flushing the contaminants to a drain. During this crucial cycle, the nozzles must:

Distribute the backwash flow evenly to ensure the entire media bed is cleaned effectively, preventing "channeling" or dead spots.

Withstand immense hydraulic force without breaking, cracking, or becoming dislodged.

Therefore, a filter nozzle is a high-performance component responsible for both media retention during service and uniform flow distribution during backwashing.

The Apex of Performance: The Wedge Wire Advantage

While various nozzle types exist, the wedge wire screen nozzle represents the pinnacle of design for durability and efficiency. Our specialization in this technology is born from its proven superiority in real-world, demanding industrial settings.

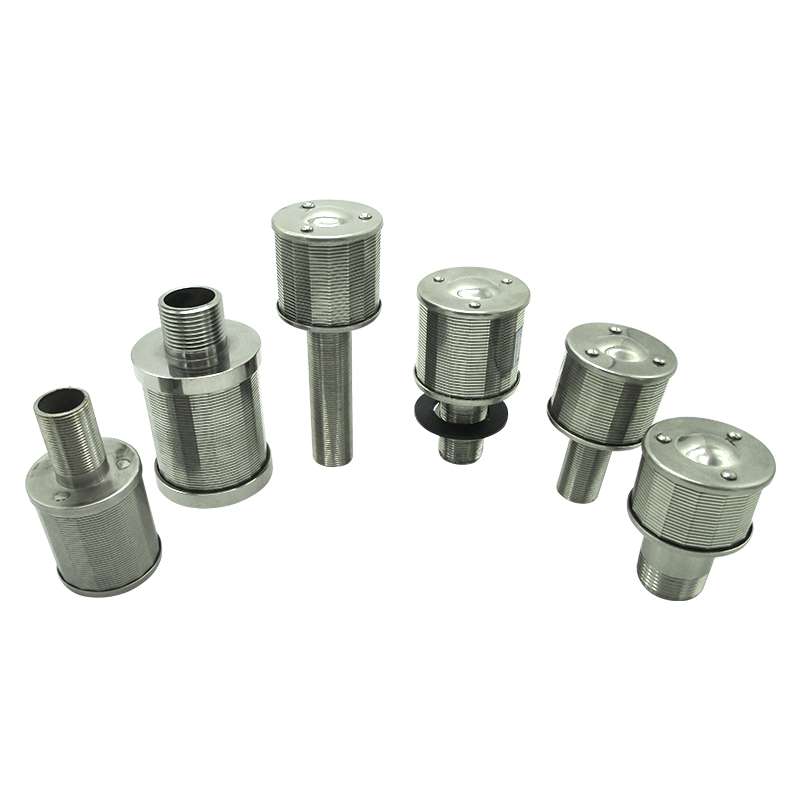

The term "wedge wire" refers to its unique construction. Instead of a simple punched hole, the screen is formed by wrapping and welding V-shaped profile wires onto a frame of support rods. This creates a continuous slot that is narrow on the outer surface and widens towards the interior. This ingenious V-shaped geometry is the key to its unparalleled performance.

Key Benefits of Wedge Wire Nozzles:

Superior Non-Clogging Performance: This is the most significant advantage. A particle that is just small enough to enter a standard round or square hole can easily get stuck. The V-shaped slot, however, creates only two points of contact. Any particle passing the narrow external opening will enter an ever-widening space, allowing it to clear easily. This self-cleaning characteristic prevents blinding, ensures consistent flow, and drastically reduces maintenance.

Exceptional Strength and Durability: The process of welding each V-wire to each support rod creates an incredibly robust, single-piece structure. This allows wedge wire nozzles to withstand high collapse pressures and the intense mechanical stresses of backwashing far better than plastic or simple perforated metal alternatives.

High Open Area and Efficiency: The design allows for a very large total open area relative to the nozzle’s size. This translates to a lower pressure drop across the filter bed, meaning less energy is required to pump water through the system. Over the operational life of a plant, this results in significant energy and cost savings.

Unmatched Precision: Advanced manufacturing allows for

extremely tight tolerances, creating slot sizes that are incredibly precise and uniform across all nozzles. This guarantees effective retention of even the finest media, preventing costly media loss and ensuring the quality of the filtered water.

Applications Across Industries: Where Wedge Wire Excels

The combination of strength, efficiency, and precision makes wedge wire nozzles the ideal choice for a diverse range of critical applications.

1. Municipal Water and Wastewater Treatment (WTP & STP)

In Water Treatment Plants (WTPs) producing drinking water, large gravity sand filters are a cornerstone of the process. Our wedge wire nozzles form the underdrain system, reliably retaining sand and gravel media while ensuring uniform collection of purified water and effective backwashing. For Sewerage Treatment Plants (STPs), they are vital in tertiary filtration, polishing the final effluent to meet strict environmental standards before it's returned to the ecosystem.

2. Heavy Industry: Steel and Paper Mills

Industrial environments don't get much tougher than a steel or paper mill.

Steel Mills: Water used for cooling and descaling becomes heavily contaminated with abrasive scale and oils. Our robust stainless steel wedge wire nozzles are built to withstand this aggressive environment, forming the core of filtration systems that enable water recycling and reduce operational costs.

Paper Mills: The papermaking process uses vast amounts of water containing valuable fibers. Wedge wire nozzles are used in screens to recover these fibers and in effluent treatment systems. Their non-clogging design is perfectly suited for handling the fibrous material that would quickly blind lesser nozzle designs.

3. High-Purity Systems: Ion Exchange and Resin Traps

In power generation, pharmaceuticals, and electronics manufacturing, water must be demineralized. This is done using ion exchange filters filled with expensive resin beads. The loss of this resin is a major financial concern. Our precision wedge wire nozzles provide absolute security, retaining the media within the vessel. Furthermore, they are used as resin traps—a critical safety filter installed downstream to catch any stray beads, protecting sensitive and expensive equipment like turbines from catastrophic damage.

4. Commercial and Other Applications

The versatility of wedge wire extends to commercial swimming pool filters, where they offer a long-lasting, high-performance alternative to traditional plastic laterals, and in collectors and distribution systems across countless other industries.

Built for Battle: Material Resilience in Harsh Chemical Fluids

Industrial process water is rarely just water. It is often a complex mixture of chemicals that can be highly corrosive. A key part of our expertise is matching the nozzle material to the process fluid, ensuring longevity and reliability. Our wedge wire nozzles are engineered to handle a wide array of aggressive working fluids:

Acids and Alkalis: For fluids containing sulfuric acid (max. 10%) or chlorine hydride (max. 10%), we utilize high-grade stainless steels like 316L. The molybdenum content in 316L provides excellent resistance to the pitting and corrosion caused by acids and chlorides. Similarly, these materials stand up to strong bases like caustic soda (max. 50%).

Solvents and Organics: Unlike plastics, which can degrade, swell, or soften when exposed to solvents, the all-metal construction of our nozzles makes them completely inert to substances like isopropanol, methanol (max. 50%), and formaldehyde (max. 10%).

High-Salinity Solutions: In applications involving salt solution (max. 30%) or brine, standard stainless steel can fail. We provide nozzles in appropriate alloys (like Duplex stainless steels) designed to resist chloride stress corrosion cracking and pitting.

Hard Water and Ammonia: The smooth surface of wedge wire is less prone to mineral scaling from hard water, and a proper backwash effectively removes any buildup. For fluids with ammonia (max. 10%), our stainless steel nozzles provide a safe, reliable material choice.

Your Foundational Investment in Water Treatment

The water filter nozzle is a perfect example of a component whose importance far outweighs its size. It is the gatekeeper that protects valuable media, the backbone that enables efficient filtration, the sentinel that stands up to aggressive chemicals, and the workhorse that endures years of violent backwashing cycles.

By choosing high-quality, expertly engineered wedge wire screen nozzles, you are making a foundational investment in the reliability, efficiency, and longevity of your entire water treatment system. You are choosing a technology designed for performance, built for durability, and tailored for the chemical realities of your specific process. In the quest for pure water, this small component makes a monumental difference.
