Header Lateral System for Efficient Flow Distribution in Filtration Vessels

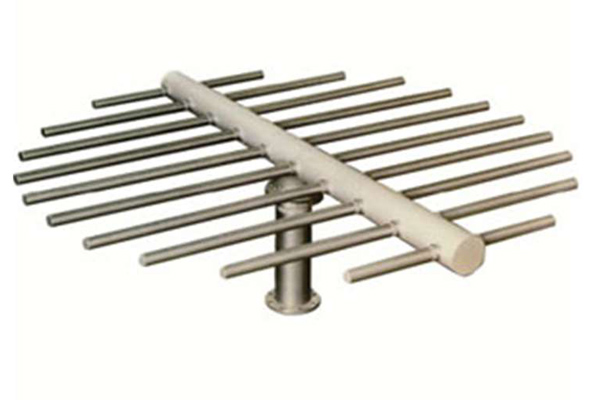

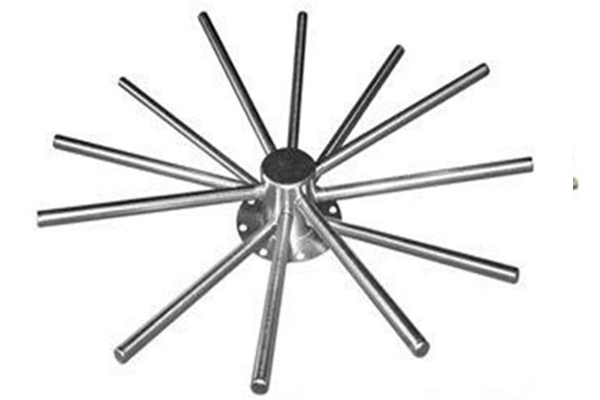

A header lateral system is an important internal distribution and collection assembly widely used in filtration and water treatment vessels. It consists of multiple wedge wire screen laterals connected to a central header pipe or hub, allowing fluids to move evenly through the treatment media inside the tank.

Because of its excellent hydraulic performance and flexible design, the header lateral system is commonly used in sand filters, ion exchange vessels, activated carbon systems, and industrial water treatment applications where uniform flow distribution is essential.

How a Header Lateral System Works

The primary purpose of a header lateral assembly is to ensure balanced flow across the entire vessel cross-section. Proper distribution helps improve filtration efficiency, reduce channeling, and extend media service life.

In a typical vessel arrangement, one lateral assembly is installed at the top of the vessel to distribute incoming water or process fluid evenly over the media bed. Another assembly is positioned at the bottom to collect the treated fluid uniformly.

For systems operating in counter-current flow, the configuration can be reversed. In this arrangement, the distributor is placed at the bottom of the vessel while the collector is located at the top.

This flexible design allows engineers to optimize fluid movement for different operating conditions and vessel structures.

Custom Design Options for Different Process Requirements

Header lateral systemscan be customized to suit a wide range of process conditions, tank sizes, and flow requirements.

Several design parameters can be adjusted, including:

Lateral spacing

Lateral diameter and length

Slot opening size

Number of laterals

Connection type

Slot openings are available from 0.002 inches and can be increased in precise increments to match the filtration media size and process requirements.

The laterals themselves can be manufactured in small diameters for compact vessels or larger diameters for high-flow industrial systems.

Depending on installation and maintenance requirements, laterals may connect to the header using threaded fittings, couplings, or flange connections.

For applications involving high pressure or heavy loads, a perforated pipe support can also be installed inside the screen laterals to improve structural strength and flow stability.

Advantages of Header Lateral Systems

Compared with traditional nozzle or perforated pipe systems, wedge wire header lateral assemblies provide several operational advantages:

Uniform flow distribution

Reduced pressure loss

Improved backwash performance

Better media retention

Lower risk of clogging

High mechanical strength

Long service life

Easier maintenance access

The continuous slot structure of wedge wire laterals also helps minimize blockage while maintaining high open area for efficient fluid movement.

Common Applications

Header lateral systems are widely used in many industrial and municipal treatment processes, including:

Sand filtration systems

Activated carbon filters

Ion exchange units

Demineralization vessels

Wastewater treatment plants

Seawater desalination pre-treatment

Industrial process water filtration systems

Each system is engineered according to the vessel diameter, operating pressure, media characteristics, and required flow rate to ensure reliable long-term performance.

FAQ About Header Lateral Systems

How do I choose the correct slot opening size?

The slot opening should be selected based on the size of the filtration media. Proper slot sizing helps prevent media leakage while maintaining sufficient flow capacity and reducing pressure drop.

Can header lateral systems be used in existing vessels?

Yes. Many header lateral assemblies are custom-designed to retrofit existing tanks and filtration vessels without requiring major structural modifications.

What causes uneven flow distribution in a vessel?

Uneven flow is often caused by poor internal design, incorrect lateral spacing, clogged nozzles, or insufficient open area. A properly engineered header lateral system helps eliminate these issues by balancing fluid flow throughout the vessel.

Are wedge wire laterals resistant to clogging?

Yes. The V-shaped wedge wire profile creates continuous slots that reduce particle buildup and improve self-cleaning performance compared with traditional perforated pipes.

Which materials are commonly used for header lateral systems?

Most systems are manufactured from stainless steel materials such as SS304 or SS316L. Duplex stainless steel and other corrosion-resistant alloys are also available for aggressive operating environments.

Can the system handle high operating pressure?

Yes. Header lateral systems can be reinforced with internal support pipes or heavy-duty structural designs to withstand demanding industrial pressure conditions.
