How Wedge Wire Screen Filters Improve High-Solids Filtration Efficiency

In industrial filtration, the challenge of "high-solids" environments, liquids containing a high percentage of suspended particles, often leads to equipment downtime, frequent clogging, and high maintenance costs. Standard mesh or fabric filters frequently fail under these heavy loads.

Wedge wire screen filters have emerged as the industry standard for managing high-solids concentrations. But how exactly do they improve the process?

1. The V-Shaped Profile: Eliminating Clogging and Blinding

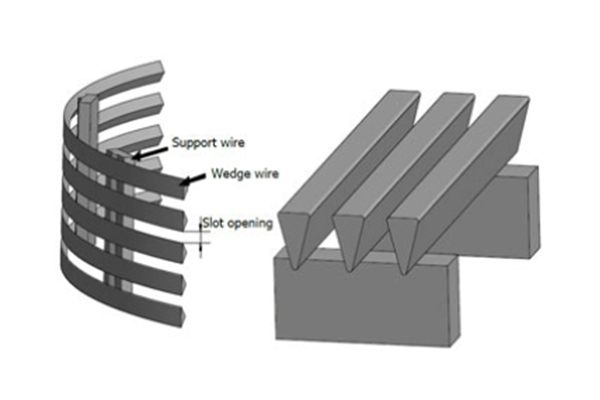

The most significant advantage of a wedge wire screen is its V-shaped profile wire. Traditional wire mesh features a square or round cross-section where particles can easily become wedged (known as "blinding").

With wedge wire:

• Two-Point Contact: Particles only touch the narrow leading edges of the V-shape.

• Inwardly Widening Slots: Because the opening widens toward the discharge side, any particle that passes the initial gap will flow through freely without getting stuck.

• Result: This "non-blinding" characteristic is essential for high-solids filtration, where the sheer volume of particles would otherwise cause immediate surface blockage.

2. Superior Structural Integrity Under Pressure

High-solids liquids often require higher operational pressures to force the liquid through the accumulated "filter cake."

Unlike flexible mesh or plastic elements, wedge wire is a welded stainless steel structure. The combination of surface wires and internal support rods allows these filters to withstand extreme differential pressures without deforming. This durability ensures a consistent slot opening, maintaining the integrity of your filtration cut point even under heavy sludge loads.

3. Optimization for Automatic Self-Cleaning Systems

For high-solids applications, manual cleaning is rarely an option due to the frequency of solids accumulation. Wedge wire is the ideal substrate for automatic self-cleaning filters:

• Scraper-Type Cleaning: The smooth, flat surface of the wedge wire allows a mechanical scraper to move across the screen, physically shearing off the filter cake without damaging the element.

• Backwash Efficiency: During a backwash cycle, the V-shaped slots create a "nozzle effect," accelerating the reverse flow to effectively "blast" solids off the screen.

4. Increased Effective Open Area

Efficiency in high-solids filtration is dictated by how much "open area" a screen provides. Wedge wire screens offer a high percentage of open area relative to their footprint.

• Low Flow Resistance: More open area means lower pressure drops.

• High Flow Rates: You can process larger volumes of high-concentration slurry in a smaller vessel, reducing the overall footprint of the filtration system.

5. Long-Term Cost-Effectiveness

While the initial investment in a YUBO wedge wire filter may be higher than disposable media, the Total Cost of Ownership (TCO) is significantly lower in high-solids scenarios:

• Reduced Consumables: No need for frequent replacement of bags or cartridges.

• Minimized Downtime: Automated cleaning means the process doesn't stop.

• Longevity: High-grade materials like 304, 316L, or Duplex stainless steel resist both abrasion and corrosion.

Applications in High-Solids Industries

Wedge wire's ability to handle heavy solids makes it indispensable in:

• Pulp and Paper: Removing fibers and fillers from process water.

• Wastewater Treatment: Sludge dewatering and primary screening.

• Mining: Mineral recovery and tailings management.

• Food & Beverage: Separating grains in brewing or skins/seeds in fruit processing.

Improving high-solids filtration requires a balance of mechanical strength and anti-clogging design. Wedge wire screens provide the precise slot control and rugged durability needed to turn a difficult, high-maintenance process into a streamlined, automated operation.

Why Choose YUBO Filters for Your Filtration Needs?

At YUBO, we specialize in custom-engineered wedge wire solutions. Whether you are dealing with abrasive tailings or viscous food products, our team designs screens that maximize throughput and minimize maintenance.

Contact our engineers today to find the perfect slot size and material for your high-solids application.
