Sidehill Screen Design

What is a Sidehill Screen?

A sidehill screen is a gravity-fed, static screening system that separates solids from liquids by passing wastewater or process fluid across a curved, slotted screen surface. The unique parabolic sidehill screen design ensures efficient flow, high separation efficiency, and minimal energy consumption.

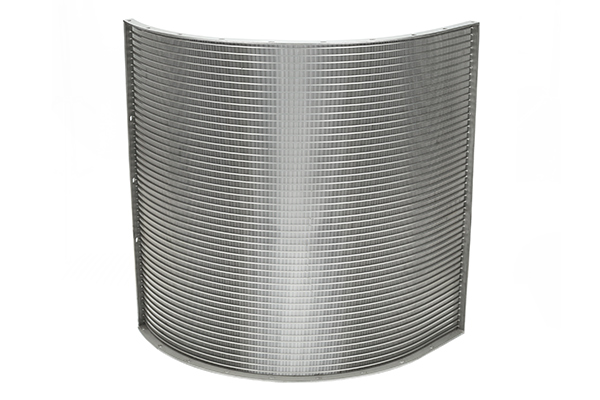

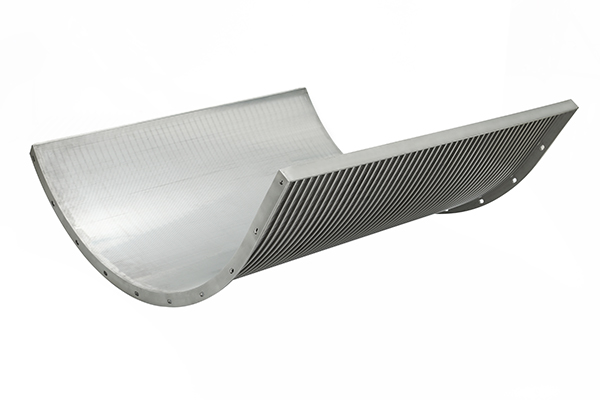

The screen surface is commonly made of wedge wire (Vee wire), which provides consistent slot size, high strength, and corrosion resistance. These attributes make the design suitable for continuous operation in harsh environments.

Sidehill Screen Design Principles

When designing a sidehill screen, engineers must consider several factors that influence performance and efficiency:

1. Screen Angle

The most common sidehill screen angle design ranges between 45° and 60°.

A steeper angle increases throughput but may reduce capture efficiency.

A shallower angle provides better separation but lower flow capacity.

2. Slot Size

Sidehill screen slot size typically ranges from 0.25 mm to 2.0 mm.

Smaller slots enhance fine particle capture but may reduce hydraulic capacity.

Correct slot sizing is essential for optimizing sidehill screen efficiency calculation.

3. Screen Surface and Open Area

Wedge wire sidehill screen design offers precision in slot openings and long service life.

The open area percentage directly affects flow rate and hydraulic design.

High open area ensures greater capacity while minimizing head loss.

4. Flow Capacity

Proper sidehill screen flow capacity calculations prevent overloading.

Engineers must balance the feed rate with separation efficiency.

5. Hydraulic Design

Efficient sidehill screen hydraulic design ensures smooth flow distribution across the parabolic screen surface.

Hydraulic head loss is minimized with accurate curvature and slot orientation.

Construction Materials

Most industrial sidehill screen construction uses stainless steel, specifically grades such as 304 or 316L. For harsh chemical environments, higher alloys like Duplex or Super Duplex may be specified.

Stainless steel sidehill screen - excellent corrosion resistance.

Custom sidehill screen design - tailored to industry-specific needs.

Applications of Sidehill Screen Design

The versatility of sidehill screens makes them valuable across numerous sectors:

• Wastewater treatment: effective in primary and secondary treatment for removing suspended solids.

• Food processing: used in breweries, fruit juice production, and dairy industries.

• Mining industry: separates fine particles from slurry.

• Pulp and paper industry: removes fibers and rejects.

• Aquaculture and fish farming: controls waste solids and protects aquatic environments.

• Chemical processing: handles corrosive effluents with precision.

• Agriculture effluent: separates manure solids from liquid fractions.

Comparison with Other Screening Systems

✔ Sidehill screen vs rotary drum screen:

Sidehill screens require no moving parts and minimal maintenance, while rotary drum screens offer higher throughput but with greater operational complexity.

✔ Sidehill screen vs hydrosieve screen:

Both are static, but hydrosieve designs often feature different curvature and capacity specifications.

Advantages of Sidehill Screen Design

Energy-efficient, gravity-fed operation.

Long service life with Vee wire construction.

Simple installation and minimal maintenance.

Customizable for industrial, municipal, and agricultural applications.

Consistent separation with precise slot openings.

Key Design Specifications to Consider

When working with a sidehill screen manufacturer or supplier, engineers should review:

Angle of inclination

Slot size and screen width

Material grade (stainless steel or alloys)

Capacity requirements

Maintenance and cleaning methods

Maintenance and Troubleshooting

Although sidehill screens are low-maintenance, regular inspection is recommended:

Routine cleaning of the static sieve bend screen surface.

Checking for clogging at narrow slot openings.

Inspecting structural integrity for wear in demanding applications.

For sidehill screen troubleshooting, engineers often address:

Reduced flow → indicates clogging or undersized slot size.

Poor separation → may require angle adjustment or redesign.

Future Trends in Sidehill Screen Design

Improved hydraulic modeling to optimize head loss and efficiency.

Custom fabrication with modular designs.

Eco-friendly sidehill sieve design for sustainable wastewater treatment.

Integration with automation and monitoring systems for better process control.

Frequently Asked Questions (FAQs)

Q1. What industries use sidehill screens most?

A: Wastewater treatment, food and beverage, mining, pulp and paper, aquaculture, and chemical processing.

Q2. What is the optimal angle for sidehill screens?

A: Typically between 45° and 60°, depending on capacity and particle size.

Q3. How do sidehill screens compare with rotary drum screens?

A: Sidehill screens are simpler, with no moving parts and lower maintenance needs, while rotary drum screens handle larger flows but with higher operating costs.

Q4. What materials are best for sidehill screen construction?

A: Stainless steel (304 or 316L) is most common; Duplex or Super Duplex is used for highly corrosive environments.

Q5. Can sidehill screens be customized?

A: Yes, many sidehill screen manufacturers offer custom designs with specific slot sizes, angles, and materials tailored to the application.

Sidehill screen design is a proven, efficient solution for industries that require solid-liquid separation. By carefully considering parameters such as slot size, screen angle, flow capacity, and hydraulic design, engineers can achieve optimal performance and long-term reliability.

Whether applied in wastewater treatment, mining, food processing, or aquaculture, sidehill screens provide a balance of efficiency, durability, and cost-effectiveness that continues to make them indispensable across industries.
