Bag Filter Housing

Bag filter housings are used in a variety of applications that require high dirt-holding capacities and flow rates.

YUBO produces customized bag filter housings of various specifications and sizes, from single bags to multi-bag, with various sizes and structural materials to choose from. Stainless steel bag filter housings can meet the project specification requirements of different industries.

Inquire Now Next Product

Product Model

BAG FILTER HOUSING

For a variety of applications that require high dirt-holding capacities and flow rates.

Bag Filter Housing factory

REQUEST SALES QUOTE

Single bag filter vs Multi Bag Filter Housings

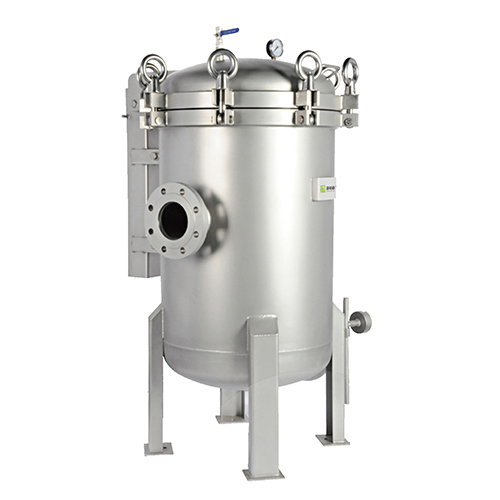

Bag Filter Housing Multi Bag Filter Housings

Project specifications will determine if a single-bag or multi-bag housing is appropriate for your application.

Single-bag filter housings are ideal for smaller applications that require a lower flow rate and solids collection. Single-bag filter housings are extremely economical and less complex than multi-bag systems Conversely, a multi-bag filter Housing System may be required for higher flow rate and solids loading applications. Multi-bag filter vessel units are designed to hold greater dirt capacities and flow rates.

Specification

Inlet/Outlet	DN25~DN300
Working Pressure	1MPa~6.4MPa
Working temp	-30℃~200℃
Filter rating	10~300mesh
Flange	HG20592、HG20615、ASME B16.5 or customized
Housing material	Carbon steel, SS304, SS316, SS316L or custimized
Bag shell	1＃, 2＃，3#，4#
Seal	Nitrile rubber, fluorine rubber, PTFE, etc.

REQUEST PRICING

Application of bag filter housings

Bag filter housings provide technologically advanced filtration capabilities for industrial water, coolant, and chemical fluid treatment applications. Whether the application requires the filtration of city water, feeding liquids through a boiler or machine, or specific water filtration for a facility, bag filter housings is the first choice. Especially suitable for the filtration of the following industries and media：

A, weakly corrosive chemical and petrochemical production materials, such as water, ammonia, oil, hydrocarbons, etc.

B, corrosive materials in chemical production, such as caustic soda, soda ash, concentrated dilute sulfuric acid, carbonic acid, acetic acid, ester acid, etc.

C, refrigeration in low-temperature materials, such as liquid methane, liquid ammonia, oxygen and various refrigerants.

D, light industry and food, pharmaceutical production of materials with health requirements, such as beer, beverages, dairy products, medical supplies, etc.

Advantages of bag filter housing

Bag Filter Housing advantage

High-quality materials-stainless steel 304 316 316L

Technologically advanced design concepts

Rugged Construction

Carbon steel or stainless steel housing

Large area bags and baskets with a greater dirt-holding capacity

Advanced Engineering

World Class Customer Service

YUBO offers different styles of bag filters as your requirements

Single-bag filter housing specification
Filter bag	No.1, No.2, No.3, No.4	Inlet/Outlet	1-1/2”
Filter rate	0.5～500μm	Drain	1/4”
Working pressure	0.1～2.5Mpa	Working temp.	4～200℃
Surface	Painting, sandblasting, polishing	Inlet/Outlet joint	Thread or flange
Design standard	ASME、 GB150、HG/T21637 or as per customer’s request
1.Filter rate：0.1,0.2,0.3,0.5,1,5,10,15,25, 50,100,200,300, 400,500,600 Microns 2.Filter bag No.23.Applicable media: water, chemicals, gases and other materials, including flammable and explosive 4.Housing material: carton steel,SS304,SS316L Duplex 2205,250, or as per customer’s request

Multi-bag filter housing specification
Model	Bag qty	Filter area (m2)	Max flow rate (m3/h)	Pressure(Mpa)	Inlet/Outlet
YDD-2	2	0.9	50	1.0	2-1/2"
YDD-3	3	1.35	75	1.0	3"
YDD-4	4	1.8	100	1.0	4"
YDD-5	5	2.25	125	1.0	5"
YDD-6	6	2.7	150	1.0	6"
YDD-8	8	3.6	200	1.0	6"
YDD-9	9	4.05	225	1.0	8"
YDD-10	10	4.5	250	1.0	8"
