Filter Housing
Inlet/Outlet: DN25~DN300
Working pressure: 1MPa~6.4MPa
Working temp: -30℃~200℃
Filtering precision: 10~300mesh
Housing material: Carbon steel, SS304, SS316, SS316 or customized
Basket material: SS304, SS316, SS316 or customized
YUBO is a Chinese industry filters manufacturer factory with first-hand raw material resources and our own engineering designers, so we can not only quickly respond to your needs, and optimize your filtration solutions, but also complete the delivery in the shortest time at the lowest cost so that Improve existing filtration efficiency while saving you cost and time.
Application field of filter element
Basket filters can filter any industrial viscous liquid filtration, including but not limited to: beverages, alcohol, honey, paint, tomato paste, etc., glue, chocolate, wastewater, industrial water, etc.
Basket filters are designed to make them ideal for industrial gas filtration. It can filter out particulate matter and harmful gases of various sizes, from tiny bacteria to large dust particles. Not only can the filtration accuracy be customized, but also the service life is long, and it is convenient to replace the filter basket. It is the first choice in many industrial gas filtration applications.

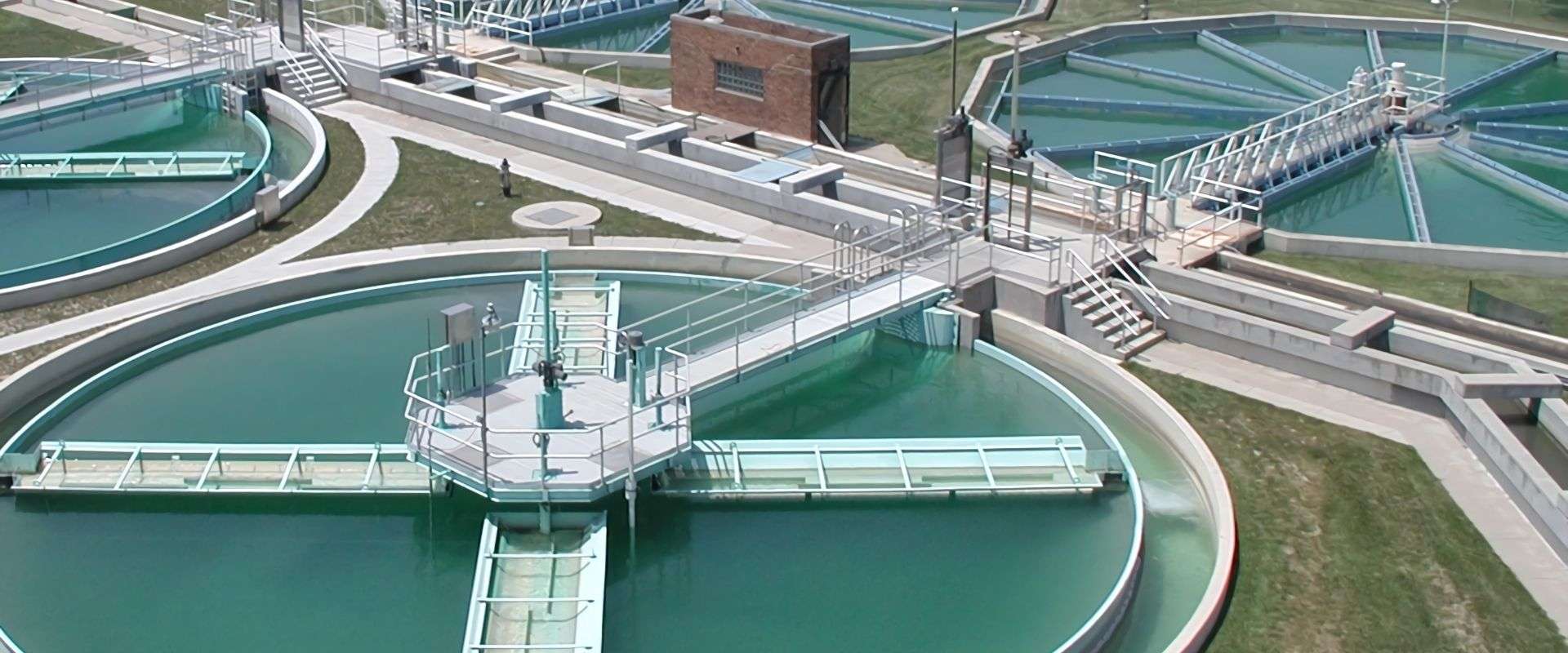

Basket filter is suitable for various types of industrial wastewater treatment, including electroplating, printing and dyeing, papermaking, chemical industry and other industries. The basket filter housing can remove suspended solids, particulate matter, organic matter and other pollutants in wastewater to achieve the purpose of purifying water quality. It has the advantages of high filtration efficiency, large processing capacity, and easy operation. It can effectively purify wastewater and meet environmental protection requirements.
Product Model

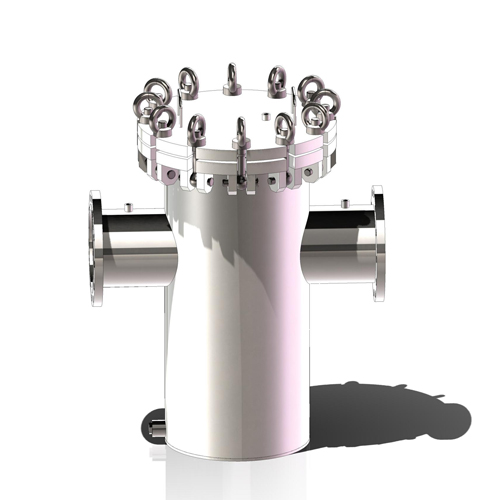

Basket filter housings filter out particulate impurities in liquids and gases
and protect the pipelines for transporting various liquids and gases.
Basket filter housings are used on oil or other liquid pipelines, the filtering
pore area is 2-3 times larger than the through-hole pipe area, far exceeding
the filtering area of Y-type and T-type filters, and the filtering precision is
excellent.
| Inlet/Outlet | DN25~DN300 |
| Working pressure | 1MPa~6.4MPa |
| Working temp | -30℃~200℃ |
| Filtering precision | 10~300mesh |
| Flange | HG20592、HG20615、ASME B16.5 or customized |
| Housing material | Carbon steel, SS304, SS316, SS316 or customized |
| Basket material | SS304, SS316, SS316 or customized |
| Sealing material | Nitrile rubber, fluorine rubber, PTFE |
| Filtering media | 1. Weakly corrosive materials in chemical and petrochemical production, such as water, ammonia, oil, hydrocarbons, etc. 2. Low-temperature materials in refrigeration, such as liquid methane, liquid ammonia, oxygen and various refrigerants 3. Materials with hygienic requirements in the food or pharmaceutical industry, such as beer, beverages, dairy products, pharmaceuticals, etc. |
Basket filter housings are commonly available in simplex and duplex configurations.
1. Simplex Basket Strainer
A simplex basket strainer uses a single filter basket inside the housing. It is suitable for applications where the filtration system can be temporarily shut down for basket cleaning or replacement.
Typical applications include:
Water treatment systems
Chemical processing lines
Cooling water filtration
General industrial filtration
2. Duplex Basket Strainer
A duplex basket strainer consists of two filter chambers connected by a switching valve system, allowing continuous filtration during maintenance.
Learn more: Duplex Basket Strainer
| Feature | Simplex Basket Strainer | Duplex Basket Strainer |
|---|---|---|
| Number of Baskets | 1 | 2 |
| Continuous Filtration | No | Yes |
| Maintenance During Operation | No | Yes |
| Initial Cost | Lower | Higher |
| Typical Application | Standard Industrial Systems | Critical Continuous Processes |
Basket filter housing systems are used to remove stones, sand, dirt, pipe scale, gravel, and other solids from industrial liquids, gases, steam, and water and are widely used in the following industries.
1. Oil and gas, natural gas pipeline transmission, and filtration.
2. Water treatment, raw water filtration, irrigation water filtration for large farms, fire water filtration
3. Marine filtration systems, shipboard freshwater system filtration, seawater valve box filters, fire fighting line suction systems, bilge water line filters, and slip oil filters.

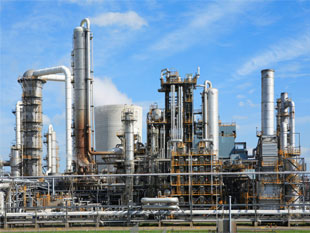

4. Chemical, cooling water filters, and chemical process filters.
5. Mining, dewatering filters and process fluid filters.
6. Metallurgy, cooling water filters for rolling mills and furnaces.
Simple working, uncomplicated structure, easy to install, disassemble and maintain.
Low operation and maintenance costs, simple operation and management.
Protect instrumentation and mechanical equipment, and maintain the safety and stability of production.
The filter basket is made of stainless steel, and the filtration precision can be customized.
YZL series basket filters | |||||||
Model | Inlet/Outlet | D | H1 | H | L | H2 | Drain |
YZL50 | DN25~DN50 | 114 | 160 | 300 | 260 | 500 | DN10 |
YZL65 | DN65 | 140 | 175 | 365 | 373 | 640 | DN15 |
YZL80 | DN80 | 168 | 215 | 420 | 400 | 720 | DN15 |
YZL100 | DN100 | 219 | 270 | 510 | 460 | 880 | DN20 |
YZL125 | DN125 | 273 | 345 | 620 | 510 | 1080 | DN20 |
YZL150 | DN150 | 325 | 410 | 725 | 560 | 1280 | DN25 |
YZL200 | DN200 | 355 | 450 | 800 | 600 | 1400 | DN25 |
YZL250 | DN250 | 406 | 495 | 895 | 670 | 1550 | DN25 |
YZL300 | DN300 | 457 | 560 | 995 | 720 | 1750 | DN25 |
YXL series basket filters | ||||||||
Model | Inlet/Outlet | D | H1 | H2 | H | L | H3 | Drain |
YXL50 | DN25~DN50 | 114 | 160 | 110 | 340 | 260 | 600 | DN10 |
YXL65 | DN65 | 140 | 200 | 130 | 555 | 460 | 980 | DN15 |
YXL80 | DN80 | 168 | 200 | 130 | 555 | 460 | 980 | DN15 |
YXL100 | DN100 | 219 | 250 | 175 | 690 | 520 | 1230 | DN20 |
YXL125 | DN125 | 273 | 250 | 175 | 690 | 520 | 1230 | DN20 |
YXL150 | DN150 | 325 | 285 | 210 | 800 | 575 | 1400 | DN25 |
YXL200 | DN200 | 355 | 340 | 270 | 980 | 710 | 1710 | DN25 |
YXL250 | DN250 | 406 | 395 | 335 | 1130 | 800 | 1950 | DN25 |
YXL300 | DN300 | 457 | 445 | 375 | 1275 | 870 | 2220 | DN25 |
1. What is a simplex basket strainer?
A simplex basket strainer is a filtration device equipped with a single filter basket. It is commonly used in industrial pipelines where periodic shutdowns for cleaning are acceptable.
2. What is the difference between a simplex and duplex basket strainer?
A simplex basket strainer contains one filter basket and requires system shutdown during maintenance, while a duplex basket strainer allows continuous operation through dual basket chambers.
3. When should I choose a simplex basket strainer?
A simplex basket strainer is typically selected for systems with moderate contamination levels and where maintenance downtime is acceptable.
