Duplex Basket Strainer

Duplex Basket Strainer

Removing large size impurities from piping systems

REQUEST SALES QUOTE

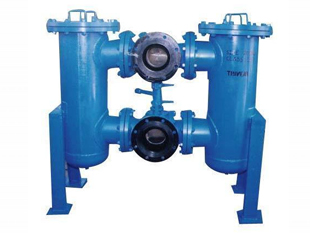

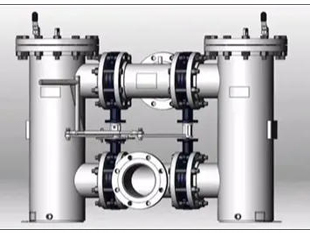

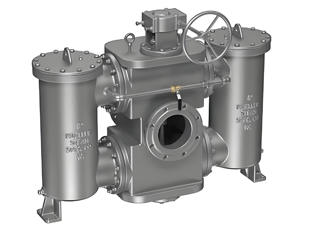

A Duplex Basket Strainer is an industrial filtration device consisting of two separate filter chambers, each containing a removable basket element. The dual-body configuration allows operators to switch liquid flow between chambers without stopping the pipeline.

During normal operation, fluid passes through the active basket where suspended particles and contaminants are captured. When the basket requires cleaning due to accumulated solids or increased pressure drop, the flow can be transferred to the standby chamber. The isolated basket can then be removed, cleaned, and reinstalled while the filtration process continues.

This design makes duplex basket strainers especially suitable for critical processes where unexpected downtime can affect production efficiency and operating costs.

Learn more about basket strainer housing design and key selection factors.

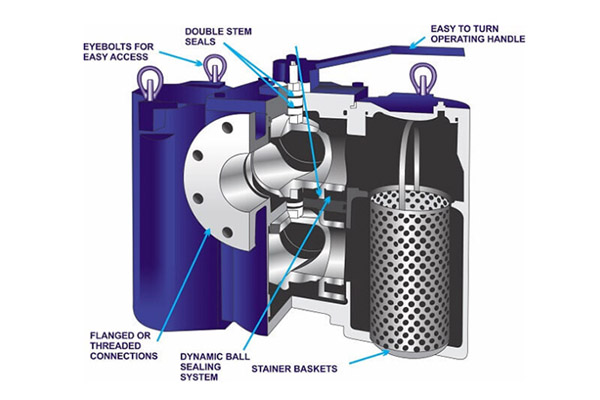

How Does a Duplex Basket Strainer Work?

The operating principle of a duplex basket strainer is based on continuous flow switching between two filtration chambers.

1. Filtration Process

The contaminated liquid enters the active chamber through the inlet connection. As the fluid passes through the basket filter element,

unwanted particles are retained on the inner or outer surface of the basket.

2. Contaminant Collection

The filtered liquid exits through the outlet while captured solids remain inside the basket. The collected particles can be removed during scheduled maintenance.

3. Chamber Switching

When the pressure difference increases or the basket requires cleaning, valves are adjusted to redirect the flow to the second filtration chamber.

4. Online Maintenance

The isolated chamber can be opened, and the basket element can be cleaned or replaced without interrupting the overall filtration process.

This continuous filtration capability reduces downtime and improves reliability in industrial systems operating around the clock.

Reliable Filtration Solution When Process Shutdown Is Not an Option

In industrial fluid systems, filtration is not only about removing unwanted particles. For many continuous production processes, the ability to maintain stable operation without unexpected downtime is equally important.

A standard simplex basket strainer can provide effective particle removal for general applications. However, when filtration equipment plays a critical role in protecting pumps, valves, heat exchangers, and downstream process equipment, stopping the system for basket cleaning may result in production losses and increased maintenance costs.

A Duplex Basket Strainer is designed for these demanding conditions. With two independent filtration chambers, it allows operators to switch between filter baskets while maintaining continuous liquid flow. This makes duplex basket strainers an ideal solution for industrial applications requiring uninterrupted filtration, high reliability, and easy maintenance.

Technical Specifications

Why Choose Duplex Basket Strainer for Continuous Filtration?

1. Continuous Operation Without Process Interruption

The biggest advantage of a duplex basket strainer is its ability to maintain filtration during maintenance.

In a single basket filtration system, cleaning requires:

Stopping fluid flow

Isolating the equipment

Opening the filter housing

Removing and cleaning the basket

Restarting the system

For many industrial processes, this interruption is undesirable.

A duplex basket strainer uses two filtration chambers. When one basket requires cleaning, the flow can be transferred to the second chamber, allowing the filtration process to continue.

This design helps reduce:

Production downtime

Equipment shutdown frequency

Maintenance disruption

Operational risks

2. Designed for High-Demand Industrial Applications

Not every filtration system requires duplex technology.

The main reason industries select duplex basket strainers is that filtration failure or shutdown can affect the entire production process.

Typical applications include:

Continuous chemical production lines

Cooling water circulation systems

Oil and fuel filtration systems

Process fluid protection systems

Industrial water treatment plants

In these applications, filtration equipment must provide reliable performance over long operating periods.

Applications of Duplex Basket Strainer

Chemical Processing

Chemical production systems often require continuous filtration to maintain stable operation.

Duplex basket strainers are used for:

Process liquid filtration

Pump protection

Raw material filtration

Chemical circulation systems

Oil & Gas Industry

In oil and gas applications, unexpected equipment shutdowns can create significant operational costs.

Duplex basket strainers provide reliable filtration for:

Fuel systems

Lubrication systems

Pipeline protection

Process equipment protection

Water Treatment

Industrial water systems require stable filtration performance to protect pumps and downstream equipment.

Applications include:

Cooling water filtration

Industrial process water

Pretreatment systems

Power Generation

Power facilities rely on continuous operation and equipment protection.

Duplex basket strainers are commonly applied in:

Cooling systems

Auxiliary water systems

Equipment protection pipelines

Frequently Asked Questions

What is the main advantage of a duplex basket strainer?

The main advantage is continuous filtration capability. It allows one filter chamber to operate while the other chamber is cleaned or maintained.

What is the difference between duplex and simplex basket strainers?

A simplex basket strainer has one filtration chamber and requires shutdown during cleaning. A duplex basket strainer has two chambers and supports continuous operation.

Are duplex basket strainers suitable for high-demand industrial applications?

Yes. They are commonly used in applications where uninterrupted filtration, equipment protection, and operational reliability are required.

How do I select the right duplex basket strainer?

Selection depends on flow rate, fluid characteristics, filtration requirements, pressure conditions, temperature, and material compatibility.

Choose Duplex Basket Strainer for Reliable Continuous Filtration

For industrial systems where filtration performance and operational continuity are equally important, a duplex basket strainer provides a more reliable solution than a conventional single basket filter.

Yubo Filters offers customized duplex basket strainer solutions designed for demanding applications requiring continuous filtration, easy maintenance, and long-term reliability.

Contact Yubo Filters for your industrial duplex basket strainer requirements.
