Industrial Basket Strainer Manufacturer: Complete Guide to Basket Filter Housing

Industrial basket strainers are essential filtration equipment used in liquid processing systems to remove unwanted solid particles and protect downstream components. As a reliable mechanical filtration solution, a basket strainer helps prevent damage to pumps, valves, heat exchangers, pipelines, and other critical equipment caused by contaminants.

Unlike disposable filters, basket strainers use a reusable filter basket installed inside a pressure-resistant housing. The basket can be removed, cleaned, and reused, making them suitable for continuous industrial operation where reliability, low maintenance, and high flow capacity are required.

What Is an Industrial Basket Strainer?

An industrial basket strainer is a type of pipeline filtration device designed to separate solid particles from liquid flows. It consists of a durable housing and a removable filtration basket that captures contaminants while allowing clean fluid to pass through.

The main purpose of a basket strainer is equipment protection rather than ultra-fine filtration. By removing larger particles and debris before they reach sensitive components, basket strainers improve system reliability and reduce unexpected downtime.

A typical basket filter housing includes:

Pressure-resistant filter housing

Removable strainer basket

Inlet and outlet connections

Cover or closure assembly

Sealing gasket

Drain and vent ports

Depending on operating conditions, basket strainers can be manufactured from carbon steel, stainless steel 304, stainless steel 316/316L, and other corrosion-resistant alloys.

How Does a Basket Strainer Work?

The working principle of a basket strainer is based on mechanical surface filtration.

During operation, contaminated liquid enters the strainer housing through the inlet connection. The fluid then passes through the openings of the filter basket, while solid particles larger than the basket opening are trapped on the inner surface.

The filtered liquid continues through the outlet and flows into the downstream system.

When contaminants accumulate, the pressure difference between the inlet and outlet gradually increases. Once the pressure drop reaches a certain level, the system operator can stop the flow, remove the basket, clean the accumulated particles, and reinstall it.

The filtration performance of a basket strainer depends on several factors:

Basket opening size

Filter surface area

Open area ratio

Fluid viscosity

Particle concentration

Flow velocity

Housing design

A properly designed basket strainer provides efficient filtration while maintaining low pressure loss and stable flow conditions.

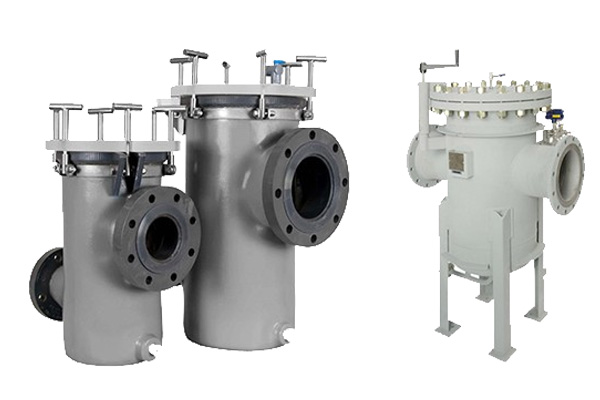

Main Components of Basket Filter Housing

1. Filter Housing

The housing is the main pressure-containing structure of the basket strainer. It protects the filter basket and ensures safe operation under industrial conditions.

High-quality basket filter housings require:

Strong mechanical structure

Reliable sealing performance

Corrosion resistance

Easy maintenance access

Stainless steel basket filter housings are commonly selected for chemical processing, water treatment, food processing, and other applications requiring durability and corrosion resistance.

2. Filter Basket

The filter basket is the core filtration component. Different basket designs are available depending on filtration requirements.

Perforated Basket

Perforated baskets are commonly used for coarse filtration applications. They provide high strength and are suitable for removing larger particles.

Wire Mesh Basket

Wire mesh baskets provide better particle retention and are available in different filtration ratings for various liquid applications.

Wedge Wire Basket

Wedge wire baskets are manufactured using V-shaped profile wires welded to support rods. Their continuous slot design provides:

High mechanical strength

Large filtration area

Low pressure drop

Reduced clogging tendency

Types of Industrial Basket Strainers

Simplex Basket Strainer

A simplex basket strainer contains one filtration chamber and is one of the most commonly used designs.

Advantages include:

Simple construction

Compact installation

Easy operation

Lower initial cost

Simplex strainers are suitable for applications where temporary shutdown is acceptable during basket cleaning.

Common uses include:

Pump protection

Water circulation systems

General industrial pipelines

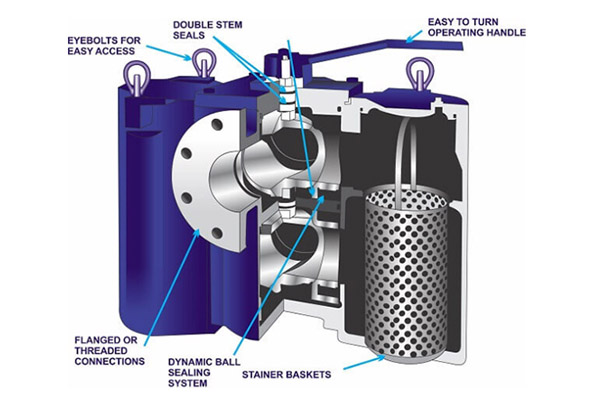

Duplex Basket Strainer

A duplex basket strainer contains two separate filtration chambers that allow continuous operation.

When one basket requires cleaning, the flow can be redirected to the second chamber without stopping the system.

Advantages:

Continuous filtration

Reduced downtime

Suitable for critical processes

Duplex basket strainers are widely used in:

Chemical plants

Oil and gas systems

Power generation

Industrial process lines

Automatic Self Cleaning Basket Strainer

Automatic self-cleaning basket strainers use mechanical cleaning systems to remove accumulated contaminants without manual basket removal.

They are commonly used in applications requiring:

Large flow capacity

Continuous operation

Reduced maintenance labor

Typical applications include municipal water treatment, cooling water systems, and industrial circulation systems.

How to Select the Right Basket Strainer?

Choosing the correct basket strainer requires evaluating several operating conditions.

1. Fluid Characteristics

The filtration material must match the process fluid.

Important considerations include:

Chemical compatibility

Temperature

Viscosity

Corrosion potential

For corrosive environments, stainless steel 316/316L or special alloys are often preferred.

2. Flow Rate Requirements

The basket strainer must provide sufficient filtration capacity without causing excessive pressure loss.

Selection factors include:

Pipeline size

Required flow rate

Basket surface area

Open area percentage

A larger filtration area generally allows higher flow capacity and longer service intervals.

3. Filtration Accuracy

The basket opening size should match the particle removal requirements.

Common options include:

Coarse particle filtration

Medium filtration

Fine particle protection

The wrong filtration rating may cause either insufficient protection or unnecessary pressure loss.

4. Maintenance Requirements

Different applications require different cleaning methods.

For systems requiring continuous operation, duplex or automatic basket strainers may provide better performance compared with simplex designs.

Industrial Applications of Basket Strainers

Water Treatment

Basket strainers are widely used in water treatment systems for:

Pump protection

Pretreatment filtration

Cooling water filtration

Process water systems

Chemical Processing

Chemical industries require reliable filtration to protect equipment from contamination.

Typical applications include:

Process liquid filtration

Chemical circulation systems

Valve and pump protection

Stainless steel basket strainers are commonly selected because of their resistance to aggressive chemical environments.

Oil and Gas Industry

In oil and gas applications, basket strainers help protect:

Pumps

Pipelines

Lubrication systems

Fuel processing equipment

High-strength housing designs are often required due to demanding operating conditions.

Food and Beverage Processing

Food processing applications require hygienic filtration solutions.

Basket strainers are used for:

Beverage filtration

Ingredient processing

Liquid transfer systems

Stainless steel construction provides easy cleaning and long-term reliability.

Frequently Asked Questions About Basket Strainers

1. What is the main purpose of a basket strainer?

A basket strainer removes solid contaminants from liquid systems and protects downstream equipment such as pumps, valves, and heat exchangers.

2. What is the difference between a simplex and duplex basket strainer?

A simplex basket strainer has one filtration chamber and usually requires shutdown during cleaning. A duplex basket strainer has two chambers and allows continuous operation during maintenance.

3. How often should a basket strainer basket be cleaned?

Cleaning frequency depends on contamination levels, operating conditions, and pressure drop. Regular monitoring helps determine the optimal maintenance schedule.

4. Which material is suitable for industrial basket strainers?

Stainless steel 304 and 316/316L are commonly used because they provide good corrosion resistance and durability. More specialized alloys may be selected for highly corrosive applications.

Industrial basket strainers are reliable filtration solutions for protecting process equipment and maintaining stable liquid system performance. With reusable filter baskets, durable housing designs, and flexible configurations, they are widely used across water treatment, chemical processing, oil and gas, food, and industrial manufacturing sectors.

Selecting the correct basket type, filtration rating, material, and housing design is essential for achieving efficient filtration and long-term operating reliability. A professional industrial basket strainer manufacturer can provide customized solutions to meet different process requirements.
